1060 Aluminum
| Parameter | Specification |
|---|---|
| Alloy | 1060 Aluminum |
| Product Type | Coil, Strip, Sheet, Circle Plate, Foil |
| Temper | O, H12, H14, H18, H24, etc. |
| Thickness | 0.1–500 mm |
| Width | 10–2,650 mm |
| Surface Treatment | Anodizing, Stucco Embossed, Mirror, PVDF Coating, Brushed |
| Standards | ASTM B209, ASTM B210, EN 573, EN 485 |

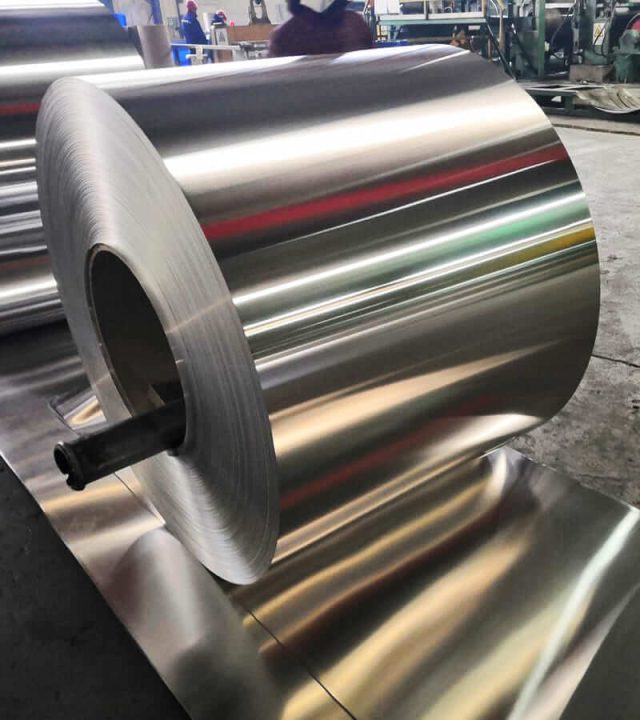

What is 1060 Aluminum
1060 aluminum belongs to the 1000 series of commercial pure aluminum, featuring a minimum aluminum content of 99.6%. It is a non-heat-treatable alloy that can only be strengthened through cold working (strain hardening).
Known for its extremely high purity, 1060 aluminum offers excellent electrical and thermal conductivity, outstanding corrosion resistance, and superior formability. While it has relatively low mechanical strength compared to alloyed aluminum, it is extensively used in non-structural, lightweight, and electrical applications where maximum formability and conductivity are required.
Types of 1060 Aluminum Huawei Supply

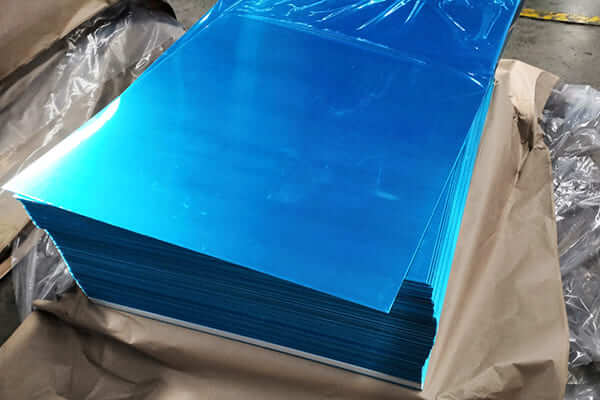

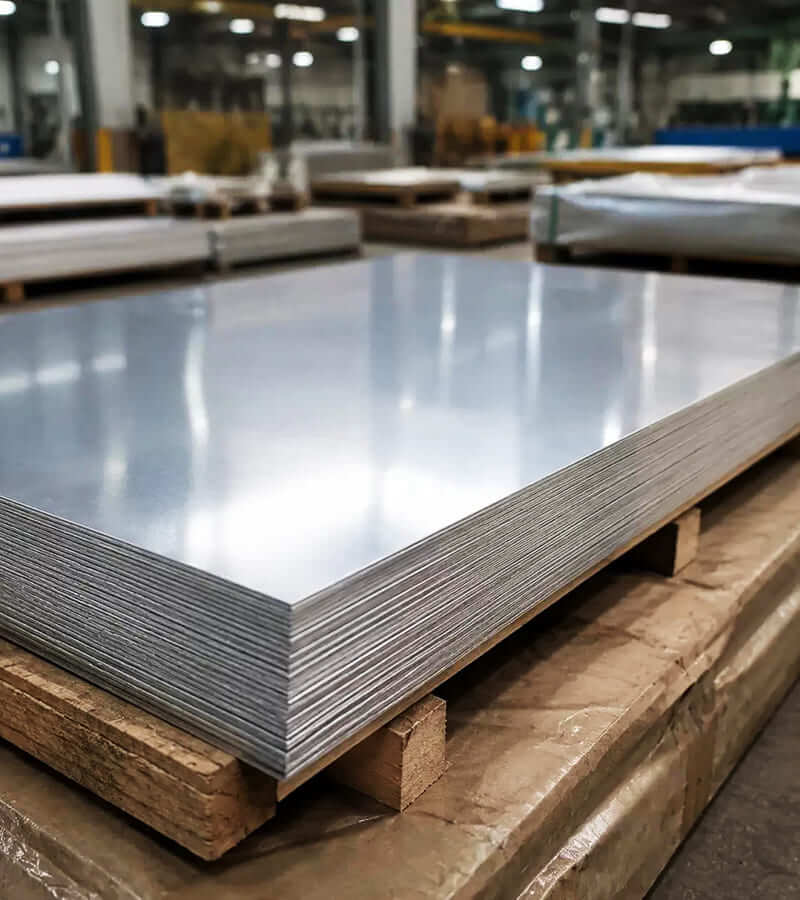

1060 Aluminum Sheet/Plate
Thickness: 0.2–500 mm
Temper: O, H12, H14, H16, H18, H24
Width: 100–2,650 mm
Length: Customized

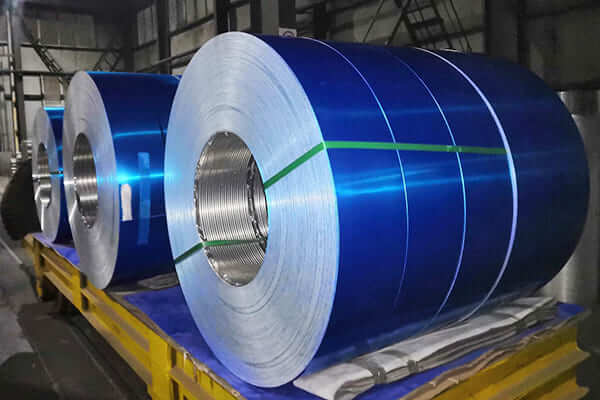

1060 Aluminum Coil
Thickness: 0.1–6.0 mm
Width: 10–2,650 mm
Coil ID: 76, 152 mm
Coil Weight: Customized

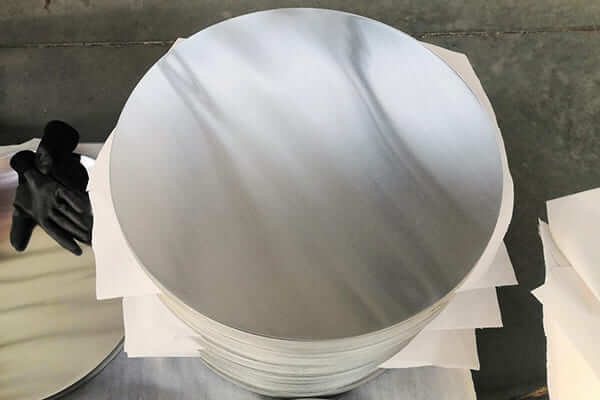

1060 Aluminum Circle/Disc
Temper: O, H12, H14, H18
Thickness: 0.5–6.0 mm
Diameter: 50–1,200 mm
Edge: Smooth, Burr-Free

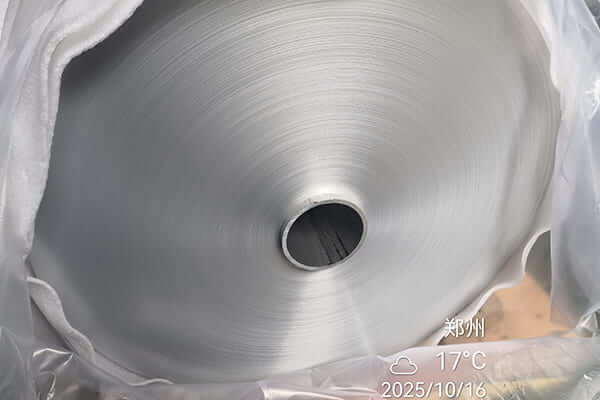

1060 Aluminum Foil/Strip
Temper: O, H12, H14, H18
Thickness: 0.006–0.20 mm
Width: 10–1,650 mm
Coil ID: 25, 76, 152 mm
1060 Aluminum Chemical Composition (Max. wt.%)
| Element | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | V | Other Each | Al |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Content (%) | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | — | 0.05 | 0.03 | 0.05 | 0.03 | 99.60 min. |
1060 Aluminum Physical Properties
Density
2.705 g/cm³
Melting Range
646–657°C
Thermal Conductivity
234 W/(m·K)
Electrical Conductivity
62% IACS
Electrical Resistivity
28.0 nΩ·m
Elastic Modulus
69 GPa
Poisson's Ratio
0.33
Specific Heat Capacity
0.900 J/(g·K)
Shear Modulus
26 GPa
Coefficient of Thermal Expansion
23.6 × 10⁻⁶/K (20–100°C)
Get Your Free Consultation
Contact us for expert advice on 1060 Aluminum products, specifications, and applications. Share your requirements, and our team will provide a suitable solution and competitive quotation.
1060 Aluminum Mechanical Properties With Diffirent Tempers
Temper
Tensile Strength
Yield Strength
Elongation
Hardness (HB)
O (Annealed)
69 MPa
28 MPa
43%
19
H12
83 MPa
76 MPa
16%
23
H14
97 MPa
90 MPa
12%
26
H16
110 MPa
103 MPa
8%
30
H18
131 MPa
124 MPa
6%
35
Key Properties of 1060 Aluminum
Excellent Conductivity
1060 aluminum offers high electrical conductivity of about 61% IACS and thermal conductivity of approximately 230–234 W/(m·K).
Good Weldability
1060 aluminum can be readily welded using common aluminum welding processes with suitable procedures and filler materials.
Excellent Formability
Its high ductility allows easy bending, rolling, stamping, spinning, and deep drawing, especially in the O temper.
Non-Heat-Treatable
1060 cannot be strengthened by heat treatment. Its strength is increased through cold working, with H12, H14, H16, and H18 offering progressively higher strength.
Excellent Corrosion Resistance
A natural oxide layer protects 1060 aluminum from atmospheric corrosion, providing reliable performance in many environments.
High Purity and Lightweight
With ≥99.60% aluminum content and a density of about 2.705 g/cm³, 1060 combines high purity with the lightweight advantages of aluminum.
Common Surface Treatment of 1060 Aluminum
Anodizing
Anodizing forms a protective oxide layer that improves corrosion resistance, surface hardness, and appearance. It is suitable for decorative and architectural applications.
Polishing
Polishing smooths the aluminum surface and creates a bright, clean finish. It is commonly used for decorative parts and reflective components.
Brushing
Brushing creates a uniform linear texture on the surface, providing a modern appearance while reducing the visibility of minor scratches and marks.
Coating
Coating adds a protective or decorative layer to improve weather resistance, corrosion protection, and color durability. Common options include PVDF and powder coating.
Embossing
Embossing creates a textured surface that improves appearance and surface durability while concealing minor imperfections.
Perforating
Perforating creates precisely arranged holes for ventilation, filtration, light transmission, and weight reduction.
Typical Applications of 1060 Aluminum

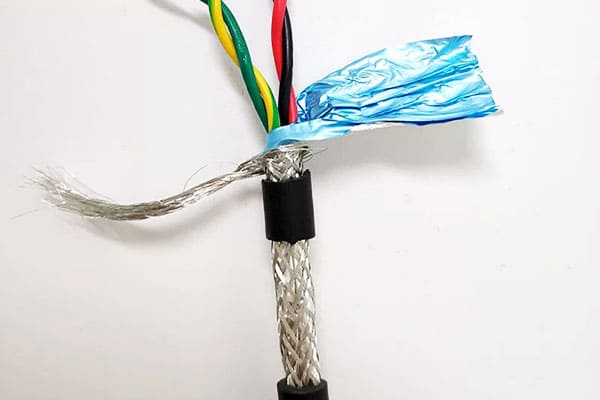

Electrical Applications
Its high electrical conductivity makes 1060 suitable for busbars, electrical conductors, transformer components, and cable applications.
- Busbars
- Transformer components
- Cable conductors and wrapping

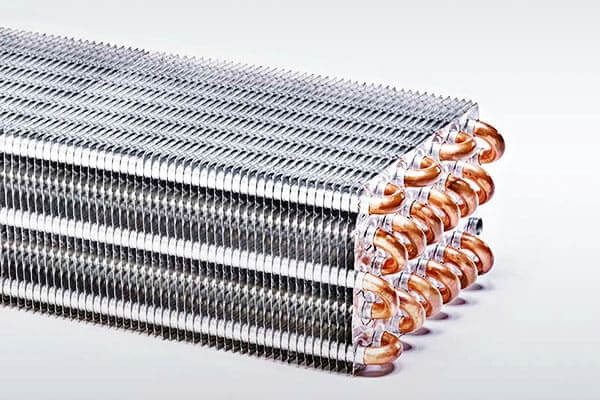

Heat Exchangers
With high thermal conductivity and good corrosion resistance, 1060 is commonly used for heat exchangers, radiators, cooling fins, and thermal-management components.
- Heat exchanger fins
- Automotive radiators
- Cooling components

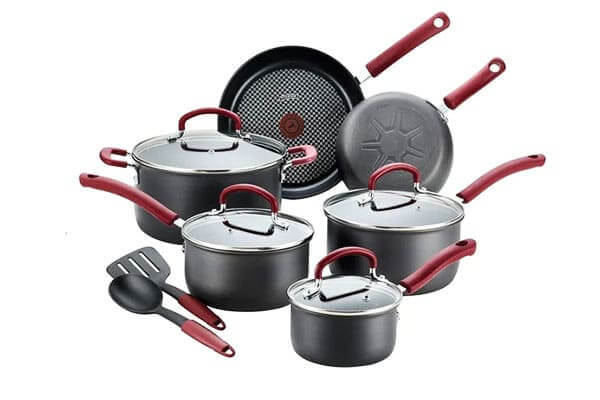

Cookware and Kitchenware
Excellent formability and corrosion resistance make 1060 suitable for cookware, pots, pans, kitchen utensils, and aluminum circles for deep-drawn products.
- Pots and pans
- Kitchen utensils
- Deep-drawn cookware

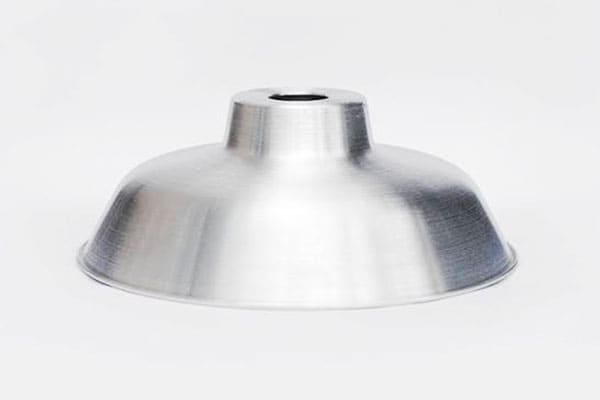

Lighting and Reflectors
Its bright surface and good reflectivity are useful for lighting reflectors, lamps, solar reflectors, and decorative components.
- LED light reflectors
- Lamp reflectors
- Solar reflectors

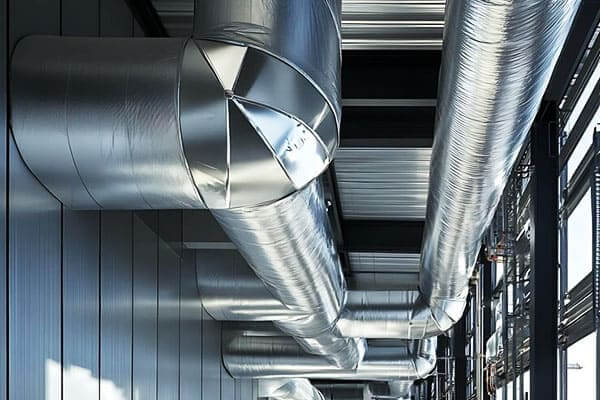

Insulation and HVAC
1060 aluminum foil and sheet are used for thermal insulation, HVAC systems, ducting, and protective cladding because of their lightweight and heat-reflective properties.
- HVAC duct insulation
- Thermal insulation foil
- Protective cladding

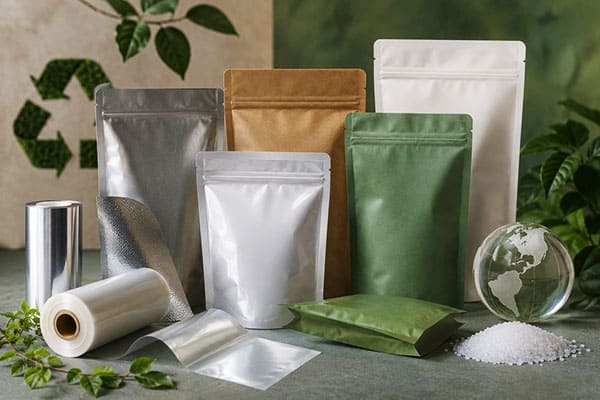

Packaging Applications
Thin 1060 aluminum can be used for foil, liners, seals, and packaging components where formability, corrosion resistance, and barrier performance are required.
- Packaging foil
- Container liners
- Sealing components

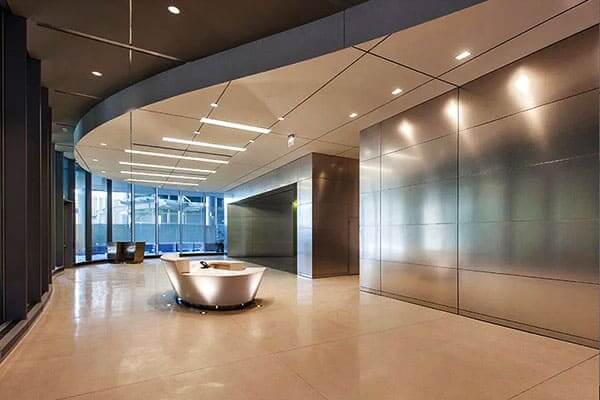

Architectural and Decorative
1060 aluminum can be processed into decorative panels, ceilings, signs, wall cladding, and interior components, with anodizing, coating, brushing, or embossing used to enhance appearance and durability.
- Decorative wall panels
- Ceiling panels
- Signboards
Standards and Certifications
| Standard | Main Scope | Application to 1060 Aluminum |
|---|---|---|
| ASTM B209/B209M | Aluminum and aluminum-alloy sheet, coiled sheet, and plate | 1060 Sheet, Plate, Coil |
| EN 573-3 | Chemical composition of wrought aluminum alloys | EN AW-1060 / Al 99.6 |
| EN 485-1 | Technical conditions for inspection and delivery | 1060 Sheet, Strip, Plate |
| EN 485-2 | Mechanical properties | 1060 Sheet, Strip, Plate |
| EN 485-4 | Shape and dimensional tolerances for cold-rolled products | 1060 Sheet, Strip, Plate |
| ISO 6361-1 | Technical conditions for inspection and delivery | 1060 Sheet, Strip, Plate |
| ISO 6361-2 | Mechanical properties | 1060 Sheet, Strip, Plate |
| ISO 6361-3 | Dimensional tolerances for strips | 1060 Aluminum Strip |
| ISO 6361-4 | Shape and dimensional tolerances for sheets and plates | 1060 Sheet, Plate |
| ISO 6361-5 | Chemical composition | 1060 Aluminum |
| GB/T 3880.1-2023 | General delivery requirements for aluminum plates, sheets, and strips | 1060 Sheet, Plate, Strip |
| GB/T 3880.2-2024 | Mechanical properties | 1060 Sheet, Plate, Strip |
| GB/T 3880.3-2024 | Dimensional tolerances | 1060 Sheet, Plate, Strip |
Reliable Aluminum Supply Backed by Quality & Expertise
From strict quality control to global export experience and professional technical support, Huawei Aluminum provides dependable solutions for customers worldwide.
Strict Quality Control
Huawei Aluminum checks chemical composition, dimensions, mechanical properties, and surface quality throughout production. ISO certification and third-party inspection are also available.
Global Export Experience
With more than 20 years of industry experience and products supplied to 72 countries, Huawei Aluminum supports reliable international supply and logistics.
Professional Technical Support
Our technical team provides guidance on alloy, temper, dimensions, surface finish, packaging, and application requirements to help customers select the right aluminum product.
1060 Aluminum vs Other Aluminum Alloys
| Property | 1060 Aluminum | 1100 Aluminum | 3003 Aluminum | 5052 Aluminum | 6061 Aluminum |
|---|---|---|---|---|---|
| Series | 1xxx | 1xxx | 3xxx | 5xxx | 6xxx |
| Alloy Type | Commercially pure Al | Commercially pure Al | Al-Mn | Al-Mg | Al-Mg-Si |
| Aluminum Content | ≥99.60% | ≥99.00% | Balance | Balance | Balance |
| Heat Treatable | No | No | No | No | Yes |
| Strength Level | Low | Low | Moderate | Moderate–High | High |
| Electrical Conductivity | 62% IACS (O) | 59% IACS (O) | 48% IACS (O) | 35% IACS (O) | 43% IACS (T6) |
| Thermal Conductivity | 234 W/(m·K) (O) | 222 W/(m·K) (O) | 193 W/(m·K) (O) | 138 W/(m·K) (O) | 167 W/(m·K) (T6) |
| Formability | Excellent | Excellent | Excellent | Very Good | Good |
| Corrosion Resistance | Excellent | Excellent | Excellent | Excellent | Very Good |
| Weldability | Excellent | Excellent | Excellent | Excellent | Good |
| Main Advantage | High purity & conductivity | Purity & workability | Strength + formability | Strength + corrosion resistance | Strength + heat treatability |
| Typical Applications | Electrical components, heat exchangers, cookware, reflectors | Heat exchangers, cookware, chemical equipment | Cookware, heat exchangers, roofing | Marine equipment, tanks, transportation | Structural components, machinery, aerospace |
FAQs
No. 1060 is a non-heat-treatable alloy. Its strength is increased through cold working, with tempers such as H12, H14, H16, and H18 providing different strength and ductility levels.
1060 aluminum contains at least 99.60% aluminum by weight. The limited alloying and impurity content contributes to its high conductivity and excellent formability.
Yes. 1060 provides excellent corrosion resistance in many atmospheric and general industrial environments. Its natural oxide film helps protect the surface from further oxidation.
Yes. 1060 offers very high electrical conductivity. A commonly cited typical value is about 62% IACS, making it suitable for electrical components and conductive applications.
Yes. 1060 has excellent weldability and can be welded using common aluminum welding processes when appropriate procedures and filler materials are selected.
Typical applications include electrical components, heat exchangers, cookware, reflectors, chemical equipment, insulation, and general formed products. It is generally selected when conductivity, corrosion resistance, and formability are more important than high structural strength.
