1070 Aluminum
| Parameter | Specification |
|---|---|
| Alloy | 1070 Aluminum |
| Aluminum Content | ≥ 99.70% |
| Product Forms | Sheet, Plate, Coil, Strip, Foil, Circle/Disc |
| Temper | O, H12, H14, H16, H18, H22, H24, H26, H28, etc. |
| Thickness | 0.006–500 mm |
| Width | 10–2,650 mm |
| Length | Customizable |
| Surface Finish | Mill Finish, Bright Finish, Polished, Anodized, Embossed |
What is 1070 Aluminum
1070 Aluminum is a commercially pure aluminum alloy in the 1xxx series, with a minimum aluminum content of 99.70%. Its high purity and low content of alloying elements give it excellent electrical conductivity, thermal conductivity, corrosion resistance, and formability. These properties make 1070 Aluminum a reliable material for applications that prioritize conductivity, purity, and ease of processing over high mechanical strength.
Unlike heat-treatable aluminum alloys such as 6061, 1070 Aluminum cannot gain strength through conventional precipitation heat treatment. Manufacturers typically adjust its mechanical properties through cold working and annealing, supplying different tempers to meet specific fabrication requirements.
Types of 1070 Aluminum Huawei Supply

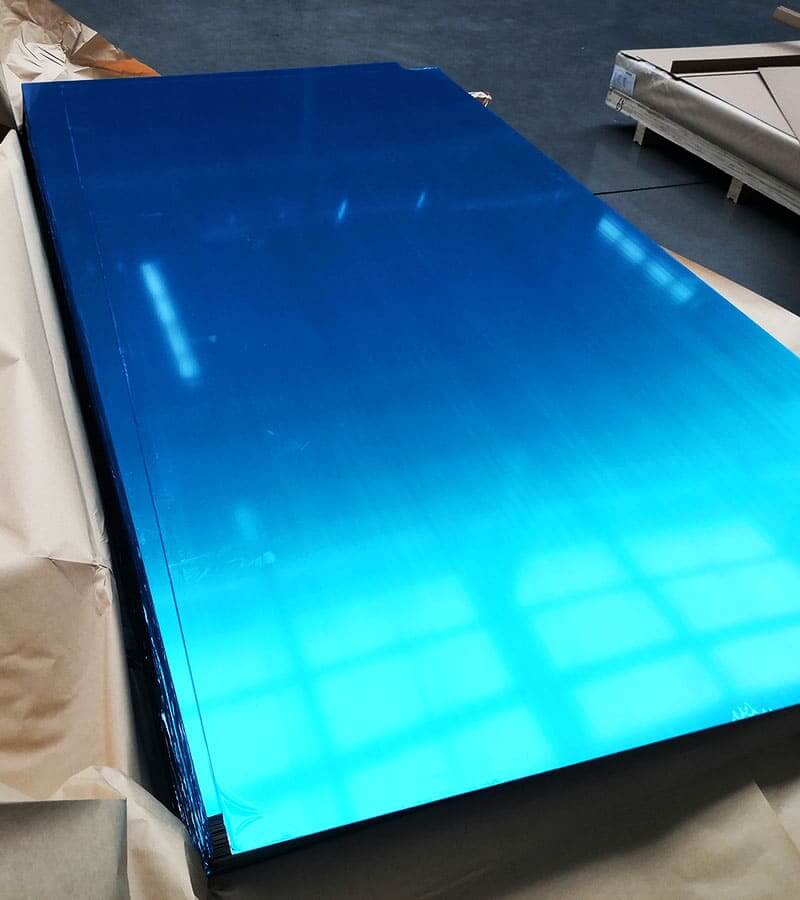

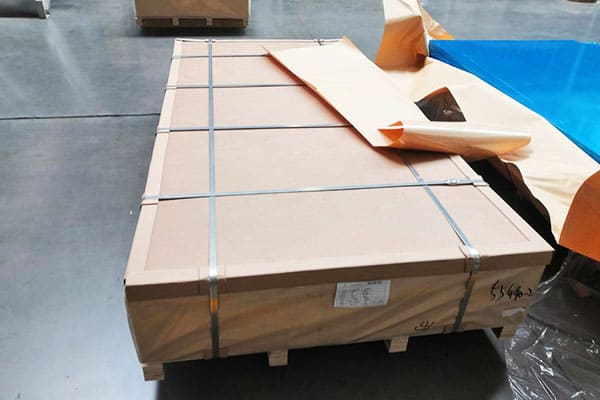

1070 Aluminum Sheet/Plate
Thickness: 0.2–500 mm
Temper: O, H12, H14, H16, H18, H24
Width: 100–2,650 mm
Length: Customized

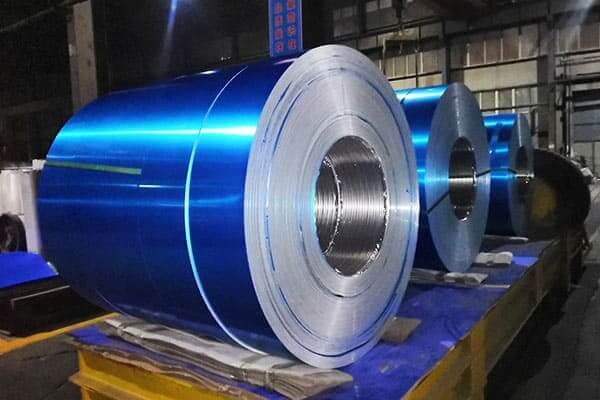

1070 Aluminum Coil
Thickness: 0.1–6.0 mm
Width: 10–2,650 mm
Coil ID: 76, 152 mm
Coil Weight: Customized

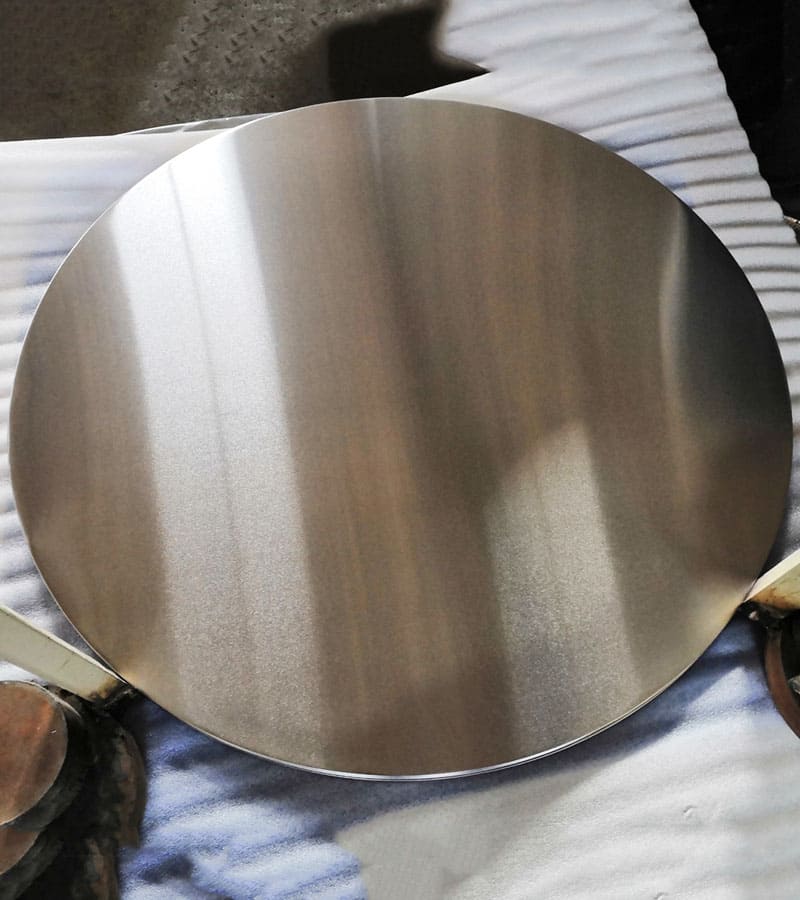

1070 Aluminum Circle/Disc
Temper: O, H12, H14, H18
Thickness: 0.5–6.0 mm
Diameter: 50–1,200 mm
Edge: Smooth, Burr-Free
1070 Aluminum Foil/Strip
Temper: O, H12, H14, H18
Thickness: 0.006–0.20 mm
Width: 10–1,650 mm
Coil ID: 25, 76, 152 mm
1070 Aluminum Chemical Composition (Max. wt.%)
| Symbol | Al | Si | Fe | Cu | Mn | Mg | Zn | Ti | V | Others, each |
| Content (wt%) | ≥ 99.70 | ≤ 0.20 | ≤ 0.25 | ≤ 0.04 | ≤ 0.03 | ≤ 0.03 | ≤ 0.04 | ≤ 0.03 | ≤ 0.05 | ≤ 0.03 |
1070 Aluminum Physical Properties
| Property | Value |
|---|---|
| Density | 2.70 g/cm³ |
| Melting Point Range | 657 – 660 ℃ |
| Specific Heat Capacity (20℃) | 900 J/(kg·K) |
| Thermal Conductivity (20℃) | 226 W/(m·K) |
| Electrical Resistivity (20℃) | 0.028 Ω·mm²/m |
| Coefficient of Linear Thermal Expansion (20–100℃) | 23.6 ×10⁻⁶ /℃ |
| Modulus of Elasticity | 70 GPa |
| Poisson’s Ratio | 0.33 |
| Magnetic Susceptibility | Non-magnetic |
Get Your Free Consultation
Contact us for expert advice on 1060 Aluminum products, specifications, and applications. Share your requirements, and our team will provide a suitable solution and competitive quotation.
1070 Aluminum Mechanical Properties With Diffirent Tempers
| Temper | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
|---|---|---|---|
| O | 55–95 | — | 20–35 |
| H12 | 70–110 | 55 min. | 2–9 |
| H14 | 85–120 | 65 min. | 1–6 |
| H16 | 100–135 | 75 min. | 1–3 |
| H18 | 120 min. | — | 1–4 |
Key Properties of 1070 Aluminum
Outstanding Conductivity
1070 grade aluminum boasts superior electrical conductivity reaching roughly 62% IACS, alongside thermal conductivity values around 226 W/(m·K).
Reliable Weldability
1070 aluminum is well-suited for mainstream aluminum welding techniques. Sound welded joints can be achieved by adopting proper operation parameters and matching filler metals.
Superior Forming Performance
Thanks to outstanding ductility, this alloy supports easy processing operations including bending, rolling, stamping, spinning and deep drawing. The O temper state delivers the best forming capability.
Non-Heat-Treatable Alloy
Mechanical strength of 1070 aluminum cannot be improved via heat treatment. Strength gains are realized only by cold deformation. Tempers H12, H14, H16 and H18 provide incremental strength upgrades.
Great Corrosion Resistance
The self-generated passive oxide film on 1070 aluminum shields the base metal against atmospheric corrosion. It maintains stable service performance under a wide range of working environments.
High Purity & Low Density
Featuring a minimum aluminum content of 99.70% and a density of 2.70 g/cm³, 1070 aluminum integrates ultra-high purity with the inherent lightweight merits of aluminum materials.
Huawei Surface Treatment Processes
Anodizing
Anodizing forms a protective oxide layer that improves corrosion resistance, surface hardness, and appearance. It is suitable for decorative and architectural applications.
Polishing
Polishing smooths the aluminum surface and creates a bright, clean finish. It is commonly used for decorative parts and reflective components.
Brushing
Brushing creates a uniform linear texture on the surface, providing a modern appearance while reducing the visibility of minor scratches and marks.
Coating
Coating adds a protective or decorative layer to improve weather resistance, corrosion protection, and color durability. Common options include PVDF and powder coating.
Embossing
Embossing creates a textured surface that improves appearance and surface durability while concealing minor imperfections.
Perforating
Perforating creates precisely arranged holes for ventilation, filtration, light transmission, and weight reduction.
Typical Applications of 1070 Aluminum
Electrical and Electronics
Its high conductivity and good formability make it a common choice for conductive and electrical components.
- Busbars and conductor strips
- Transformer windings and foil
- Capacitor
- Electrical enclosures
Heat Transfer and Thermal Management
Its excellent thermal conductivity suits it to a wide range of cooling and heat exchange parts.
- Heat exchanger fins and tubes
- Heat sinks and cooling plates for lighting and electronics
- Reflectors and radiator components
Chemical, Food, and Pharmaceutical
Its high purity and corrosion resistance meet the demands of applications where cleanliness and chemical resistance matter.
- Tanks, vessels, and piping for chemicals
- Food processing equipment, containers, and packaging

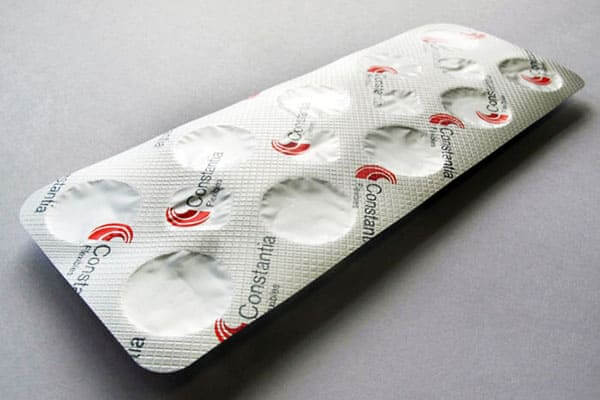

- Pharmaceutical packaging and blister foil
Lighting and Reflective Products
Its bright surface and good anodizing response make it well suited to reflective and decorative products.
- Lamp reflectors and lighting fixtures
- Decorative and architectural trim
Deep-Drawn and Spun Parts
1070 aluminum excellent ductility allows complex forming such as deep drawing and spinning.

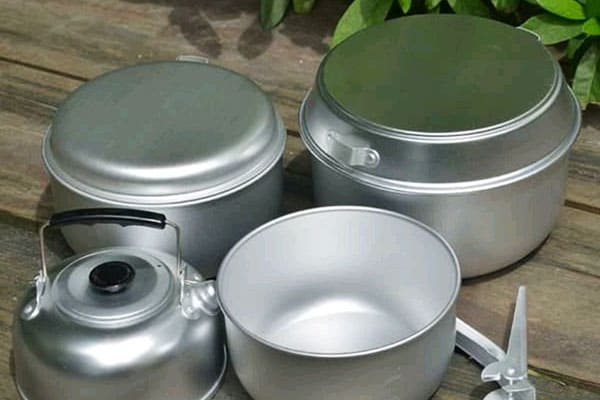

- Cookware components, caps, closures, and deep-drawn containers
- Spun articles and decorative hardware
Standards and Certifications
| Standard | Main Scope | Application to 1070 Aluminum |
|---|---|---|
| ASTM B209/B209M | Aluminum and aluminum-alloy sheet, coiled sheet, and plate | 1070 Sheet, Plate, Coil, where covered by the specified edition |
| EN 573-3 | Chemical composition of wrought aluminum alloys | EN AW-1070A / Al 99.7 |
| EN 485-1 | Technical conditions for inspection and delivery | 1070A Sheet, Strip, Plate |
| EN 485-2 | Mechanical properties | 1070A Sheet, Strip, Plate |
| EN 485-4 | Shape and dimensional tolerances for cold-rolled products | 1070A Sheet, Strip, Plate |
| ISO 209 | Chemical composition of wrought aluminum and aluminum alloys | 1070 Aluminum |
| ISO 6361-1 | Technical conditions for inspection and delivery of wrought aluminum sheet, strip, and plate | 1070 Sheet, Strip, Plate |
| ISO 6361-2 | Mechanical properties of wrought aluminum sheet, strip, and plate | 1070 Sheet, Strip, Plate, where specified |
| ISO 6361-3 | Dimensional tolerances for strips | 1070 Aluminum Strip |
| ISO 6361-4 | Shape and dimensional tolerances for sheets and plates | 1070 Sheet, Plate |
| GB/T 3190 | Chemical composition of wrought aluminum and aluminum alloys | 1070 Aluminum |
| GB/T 3880.1 | General requirements for aluminum plates, sheets, and strips | 1070 Sheet, Plate, Strip |
| GB/T 3880.2 | Mechanical properties of aluminum plates, sheets, and strips | 1070 Sheet, Plate, Strip |
| GB/T 3880.3 | Dimensional tolerances for aluminum plates, sheets, and strips | 1070 Sheet, Plate, Strip |
Reliable Aluminum Supply Backed by Quality & Expertise
From strict quality control to global export experience and professional technical support, Huawei Aluminum provides dependable solutions for customers worldwide.
Strict Quality Control
Huawei Aluminum checks chemical composition, dimensions, mechanical properties, and surface quality throughout production. ISO certification and third-party inspection are also available.
Global Export Experience
With more than 20 years of industry experience and products supplied to 72 countries, Huawei Aluminum supports reliable international supply and logistics.
Professional Technical Support
Our technical team provides guidance on alloy, temper, dimensions, surface finish, packaging, and application requirements to help customers select the right aluminum product.
1070 Aluminum vs Other Aluminum Alloys
| Property | 1070 Aluminum | 1050 Aluminum | 1060 Aluminum | 3003 Aluminum | 5052 Aluminum | 6061-T6 Aluminum |
|---|---|---|---|---|---|---|
| Aluminum Content (min.) | 99.70% | 99.50% | 99.60% | Balance | Balance | Balance |
| Main Alloying Elements | Very low impurities | Very low impurities | Very low impurities | Mn: 1.0–1.5% | Mg: 2.2–2.8% | Mg: 0.8–1.2%; Si: 0.4–0.8% |
| Tensile Strength (MPa) | Temper-dependent; approx. 73–140 | Temper-dependent | Temper-dependent | Approx. 110–240 | Approx. 190–310 | Approx. 260–310 |
| Yield Strength (MPa) | Temper-dependent; approx. 17–120 | Temper-dependent | Temper-dependent | Approx. 40–210 | Approx. 80–260 | Approx. 240–276 |
| Density (g/cm³) | Approx. 2.70 | Approx. 2.71 | Approx. 2.70 | Approx. 2.73 | Approx. 2.68 | Approx. 2.70 |
| Electrical Conductivity | Excellent | Excellent | Excellent | Good | Moderate | Moderate |
| Corrosion Resistance | Excellent | Excellent | Excellent | Very good | Excellent | Good to very good |
| Formability | Excellent | Excellent | Excellent | Very good | Good | Moderate |
| Heat Treatable | No | No | No | No | No | Yes |
| Main Advantages | High purity and electrical conductivity | High purity and formability | High purity and conductivity | Better strength than pure aluminum | High strength and corrosion resistance | High strength and machinability |
| Typical Applications | Conductors, electrical components, heat-transfer parts | Reflectors, panels, general fabrication | Electrical parts, heat exchangers | HVAC, cookware, tanks | Marine parts, vehicle panels, enclosures | Structural parts, machinery, machined components |
FAQs
1070 Aluminum is a commercially pure aluminum alloy containing at least 99.70% aluminum. It offers excellent electrical and thermal conductivity, corrosion resistance, and formability.
Its main properties include high purity, low density of approximately 2.70 g/cm³, excellent conductivity, good corrosion resistance, and excellent ductility in the annealed condition.
No. 1070 Aluminum is non-heat-treatable. Manufacturers adjust its strength mainly through cold working and annealing. Common tempers include O, H12, H14, H16, H18, H22, and H24.
1070 Aluminum is commonly used for electrical conductors, cable components, transformer parts, heat-transfer equipment, reflective products, and industrial components where high purity and conductivity are important.
Common forms include sheet, plate, coil, strip, foil, and circle/disc. Product availability depends on the required dimensions, temper, and manufacturing process.
1070 Aluminum has a minimum aluminum content of 99.70%, compared with 99.60% for 1060 Aluminum. Both provide good conductivity and formability, but 1070 is preferred when higher aluminum purity is required.
Yes. 1070 Aluminum offers very good resistance to atmospheric corrosion because its surface naturally forms a protective oxide layer. Its suitability for aggressive chemical environments should be evaluated against the specific operating conditions.
Yes. Henan Huawei Aluminum Co., Ltd. can discuss customized product forms, dimensions, tempers, and surface finishes according to project requirements. Buyers should specify the applicable standard and required inspection documents when requesting a quotation.
